BX

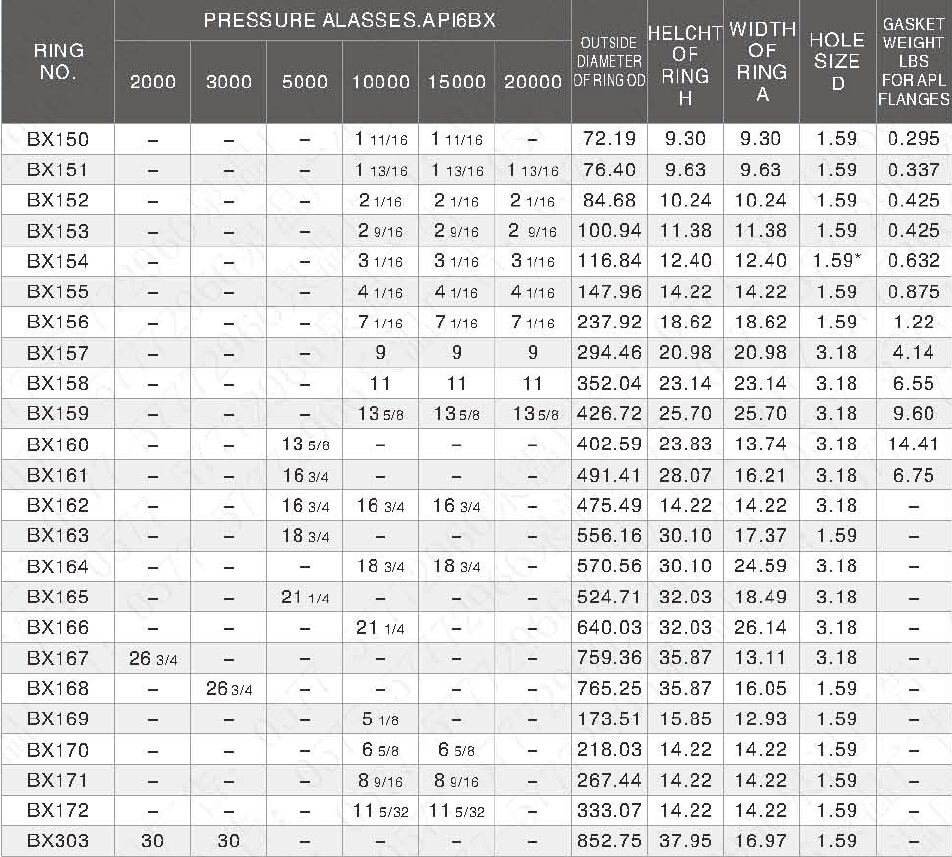

Size/Pressure Class:
1 11/16” to 30” : ” 2000 to 20000 API 6A

Size/Pressure Class:
1 11/16” to 30” : ” 2000 to 20000 API 6A
Applications:

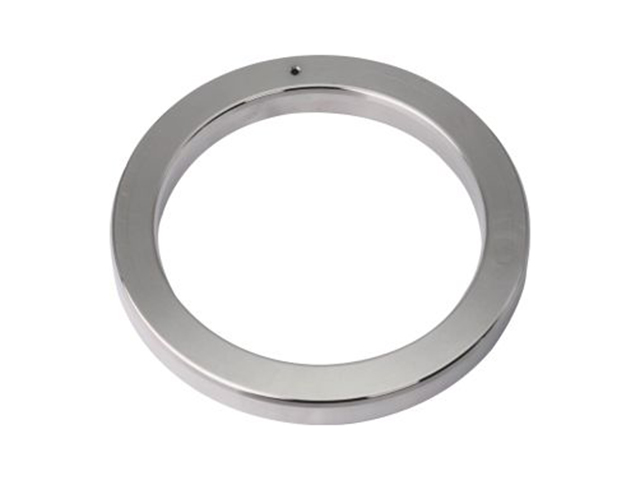

* The Style BX energized ring type joint is manufactured in accordance with API 6Aforuse in high pressures.
* Style BX ring type joints incorporate a pressure passage hole to allowfor pressure equalization each side of the sealing faces.
* Style BX is not interchangeable with any other style, and is only suited for API 6BX flanges .

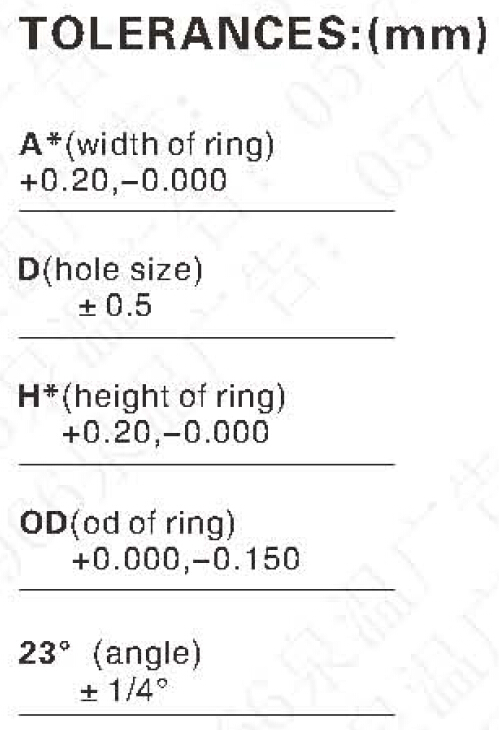

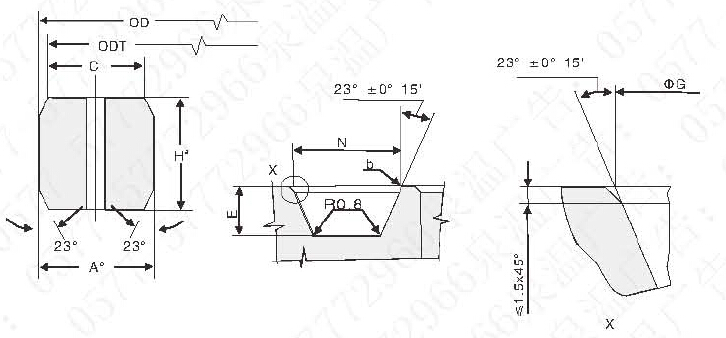

One pressure passage hole required per ring on centre line t A plus tolerance of 0.008inches for width Wand height Vis permitted, provided the variation in width or height does not exceed 0.004 inches throughout its entire circumference.
