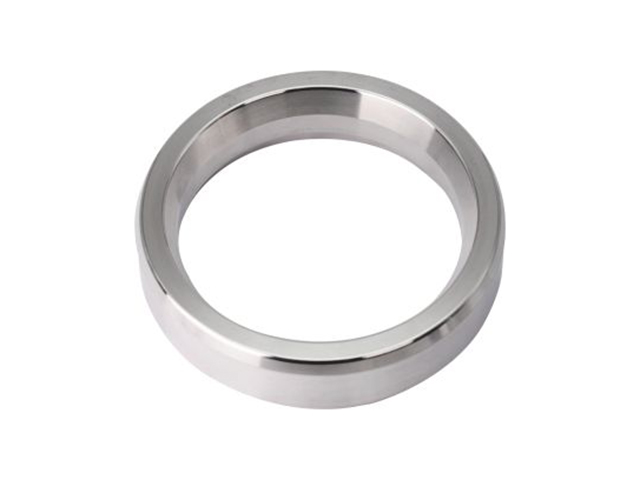

RX

* Used for high pressure applications.
* The Style RX is designed to fit the same groove design as a standard style R making joints interchangeable
*The Style RX has an increased height and utilizes the internal system pressure to energize and improve the seal as internal pressure » Suitable for flat bottom groove flanges
* Designs are also available for Sub sea applications.

online service

Tel:086-0577-86883335
Email: valvelbow@wzststeel.com
Skype: Valve pipe.Fitting. tube
WhatsApp:
PDF Download
Inquiry
Not the last one
No next

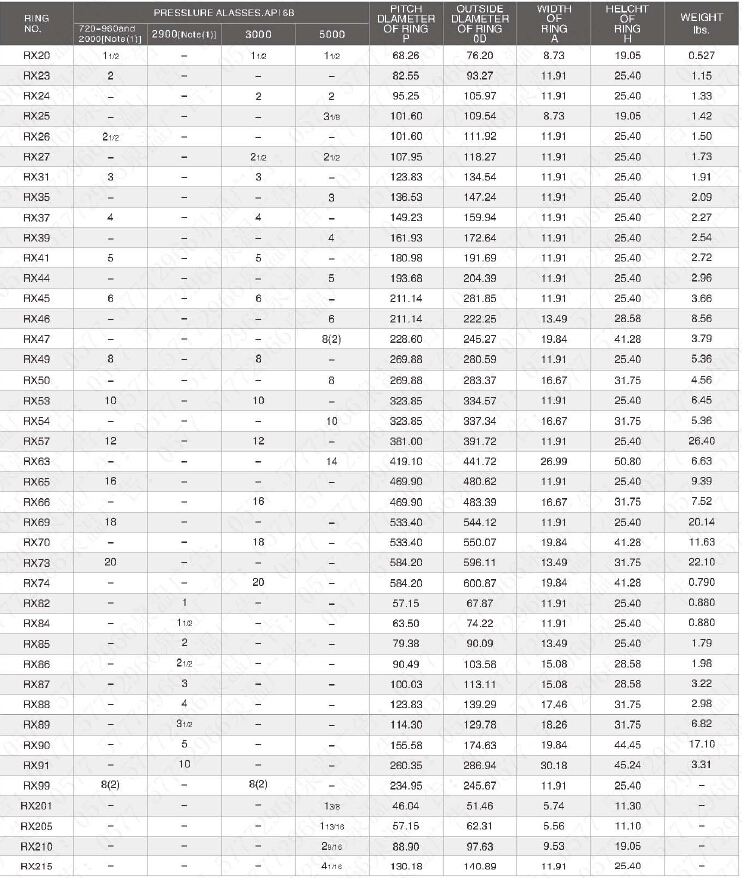

Size/Pressure Class:
1 1/2” to 20” ： 720 to 5000 API 6A
Applications:
* Used for high pressure applications.
* The Style RX is designed to fit the same groove design as a standard style R making joints interchangeable
*The Style RX has an increased height and utilizes the internal system pressure to energize and improve the seal as internal pressure » Suitable for flat bottom groove flanges

* Designs are also available for Sub sea applications.

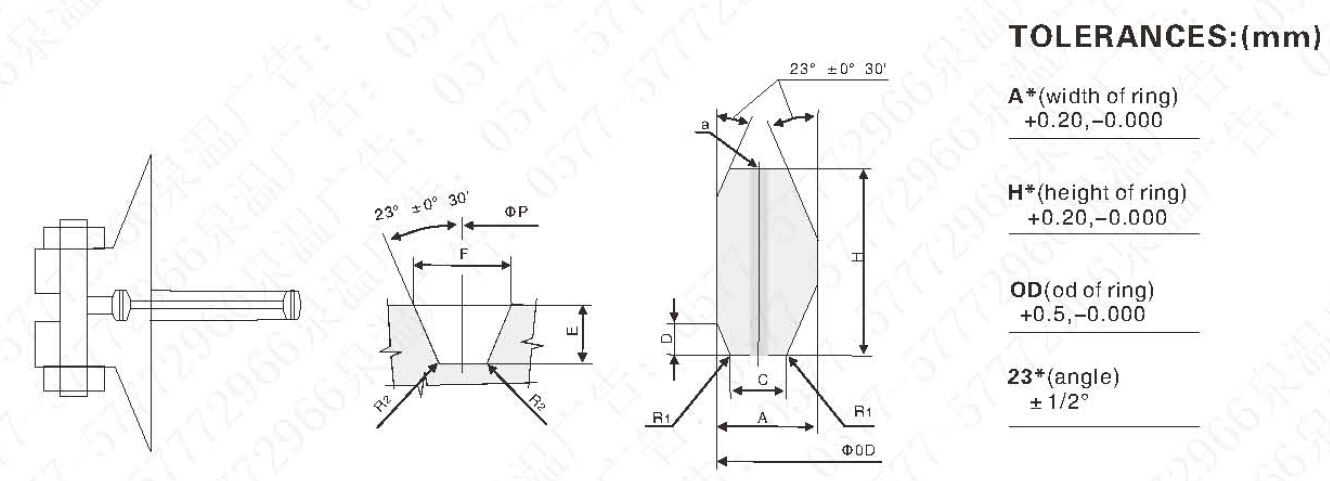

*A plus tolerance of 0.008 inches for width
"A" and height "H" is permitted, provided the variation in width or height does not exceed 0.004 inches throughout its entire circumference.
NOTE 1:
The pressure passage hole illustrated in the Ring Type Joint cross section ensures equalisation of pressure which may be trapped in the grooves, it is in ring RX82 through RX91 Only. Centre line of hole shall be located at mid point of dimension,,c"(width of flat).Hole diameter shall be as
